120°封閉型沉頭抽芯鉚釘 IFI 126 - 2003

選擇規格尺寸 點擊↓

4#

5#

6#

8#

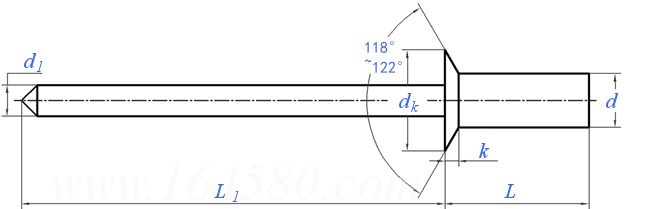

IFI  126 - 2003 120°封閉型沉頭抽芯鉚釘

尺寸單位: inch
美标IFI 126 - 2003 IFI126 126IFI 120°封閉型沉頭抽芯鉚釘
IFI  126 - 2003 120°封閉型沉頭抽芯鉚釘
掃一掃分享
螺紋公稱直徑代号
4# 5# 6# 8#
d 公稱
最大值
最小值
dk 最大值
最小值
k 最大值
d1 最大值
L1 最小值
1/8 5/32 3/16 1/4
0.128 0.156 0.191 0.255
0.122 0.153 0.183 0.246
0.245 0.328 0.394 0.525
0.221 0.296 0.356 0.475
0.042 0.051 0.060 0.080
0.074 0.092 0.110 0.146
1.00 1.06 1.06 1.06
告訴我在“易緊通”看到,将給您優惠
聯系人:吳鐵洲   移動電話: 15906744333     電話:0574-63313978 Email: 登陸後可見
材料:銅、鋁、鐵、不鏽鋼;規格:齊全;表面處理:按照客戶的要求
類似标準及供貨信息
1 封閉型沉頭抽芯鉚釘 11級 [國标]
GB /T 12616.1 - 2004
封閉型沉頭抽芯鉚釘 11級
Closed End Blind Rivets With Break Pull Mandrel And Countersunk Head-Property Class 11
供應商(5)
2 封閉型沉頭抽芯鉚釘 [國标]
GB 12616 - 1990
封閉型沉頭抽芯鉚釘
120 Deg Flush Head Break Mandrel Closed And Blind Rivets
供應商(5)
3 米制封閉型沉頭抽芯鉚釘 [美标]
IFI 509 - 1999
米制封閉型沉頭抽芯鉚釘
Metric 120 Deg Flush Head Style Break Mandrel Closed End Blind Rivets
供應商(1)
4 沉頭封閉型抽芯鉚釘 [國際]
ISO 15974 - 2000
沉頭封閉型抽芯鉚釘
Closed End Blind Rivets With Break Pull Mandrel And Countersunk Head - AIA/St
供應商(4)
5 沉頭抽芯鉚釘 [汽标代号]
Q 443
沉頭抽芯鉚釘
Countersunk head with break mandrel blind rivets
供應商(3)
6 封閉型沉頭抽芯鉚釘 11級 [汽标代号]
Q 443B
封閉型沉頭抽芯鉚釘 11級
Closed End Blind Rivets With Break Pull Mandrel And Countersunk Head-Property Class 11
供應商(3)
7 鋁帽鐵芯沉頭封閉型拉鉚釘 [法國]
NF E 25-711 - 2001
鋁帽鐵芯沉頭封閉型拉鉚釘
Closed End Blind Rivets With Break Pull Mandrel And Countersunk Head - AIA/St
8 51級 封閉型沉頭抽芯鉚釘 [企标]
YJT GB/T 12616.4 - 2004
51級 封閉型沉頭抽芯鉚釘
Closed End Blind Rivets With Break Pull Mandrel And Countersunk Head--property Class 51
供應商(3)
9 沉頭封閉型抽芯鉚釘 [德标]
DIN EN ISO 15974 - 2001
沉頭封閉型抽芯鉚釘
Closed End Blind Rivets With Break Pull Mandrel And Countersunk Head - AIA/St
注:技術數據僅供參考,以官方原件為準!
