圓柱頭螺栓 GJB 3371 (/33~/39) - 1998

選擇規格尺寸點擊↓

M1.4

M1.6

M2.5

M10

尺寸單位: mm

軍标GJB 3371 (/33~/39) - 1998 GJB3371 3371 圓柱頭螺栓

掃一掃分享

公差公制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級毛坯直徑

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

公稱直徑
d

M1.4

M1.6

M2.5

M10

P	螺距
d₁	h12	最大值=公稱
		最小值
H	h14	最大值=公稱
		最小值
D	h14	最大值=公稱
		最小值
b	參考
r	±0.2
r₁	參考
n	H12	最小值=公稱
		最大值
t	h14	最大值=公稱
		最小值
d₂	H13	最小值=公稱
		最大值
d₃
c₁	參考
C	參考

0.25	0.3	0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5
1	1.4	1.6	2	2.5	3	4	5	6	8	10
0.9	1.3	1.5	1.9	2.4	2.9	3.88	4.88	5.88	7.85	9.85
0.7	1	1.2	1.4	1.7	2	2.8	3.5	4	5	6
0.45	0.75	0.95	1.15	1.45	1.75	2.55	3.2	3.7	4.7	5.7
2	2.6	3	3.5	4.2	5	6	7.5	9	12	15
1.75	2.35	2.75	3.2	3.9	4.7	5.7	7.14	8.64	11.57	14.57
2.5	3.4	4.3	5.2	7	7	7.5	8.5	10	11.5	15
0.3	0.3	0.3	0.3	0.3	0.3	0.5	0.5	0.5	0.8	0.8
0.2	0.25	0.3	0.3	0.45	0.5	0.6	0.7	0.9	1.2	1.5
0.3	0.4	0.4	0.5	0.6	0.8	1	1.2	1.5	1.5	2
0.4	0.5	0.5	0.6	0.7	0.9	1.1	1.3	1.6	1.6	2.1
0.4	0.5	0.6	0.7	0.8	1	1.4	1.8	2	2.5	3
0.15	0.25	0.35	0.45	0.55	0.75	1.15	1.55	1.75	2.25	2.75
-	-	-	-	-	-	1	1.6	1.6	2	2.5
-	-	-	-	-	-	1.14	1.74	1.74	2.14	2.64
0.6	0.8	0.8	1	1.4	1.5	1.8	2.2	2.5	2.5	3
0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.3
-	-	-	-	-	-	2.5	3	3	4	4

千件鋼制重≈kg

①,ML25、38CrA、GH2132 、鋁合金和黃銅制螺栓，光杆直徑 d1 允許等于滾制或切制螺紋前的毛坯尺寸。
②,當d1 ≤ 3mm時，r不大于0.3mm。

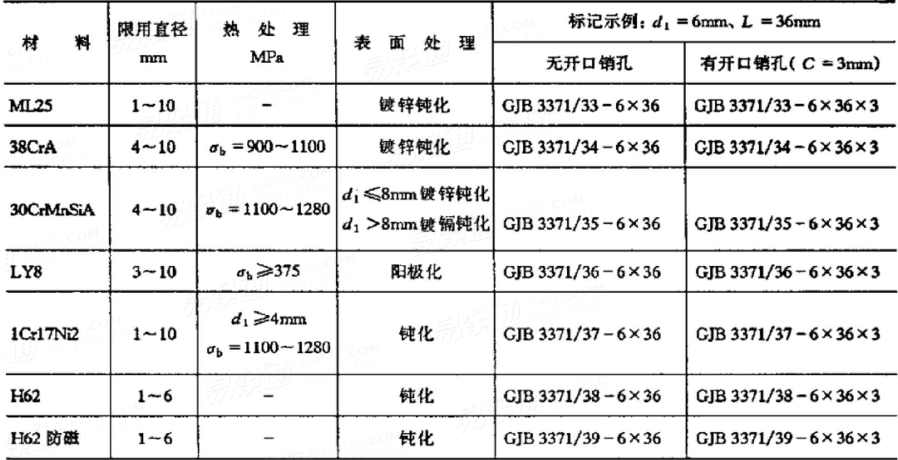

材料、熱處理及表面處理

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求

GB /T 5779.3 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求

注：技術數據僅供參考，請以官方原件為準！
