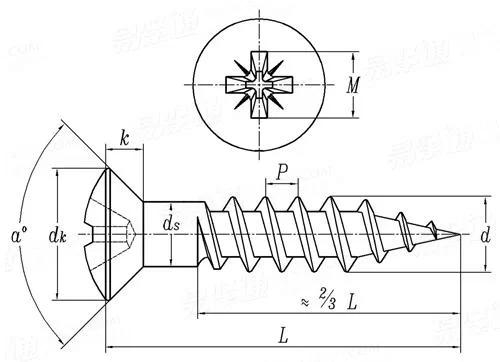

米字槽半沉頭木螺釘 Table 26 BS 1210 - 1963

選擇規格尺寸點擊↓

10#

12#

14#

16#

尺寸單位: inch

英标BS 1210 - 1963 BS1210 1210BS 米字槽半沉頭木螺釘 Table 26

在線制圖

掃一掃分享

公差

螺紋規格
d

10#

12#

14#

16#

d_s	公稱
	最大值
	最小值
PP
d_k	最大值
	最小值
k	最大值
M	公稱
槽号

0.094	0.108	0.122	0.136	0.150	0.164	0.178	0.192	0.220	0.248	0.276
0.097	0.113	0.127	0.141	0.155	0.169	0.183	0.197	0.225	0.253	0.281
0.090	0.104	0.117	0.131	0.145	0.159	0.173	0.186	0.212	0.238	0.266
24	22	20	18	16	14	12	12	10	9	8
0.188	0.216	0.244	0.272	0.300	0.328	0.356	0.384	0.440	0.496	0.552
0.179	0.205	0.232	0.258	0.285	0.312	0.338	0.365	0.418	0.472	0.524
0.055	0.064	0.073	0.082	0.091	0.100	0.109	0.117	0.135	0.153	0.170
0.109	0.123	0.150	0.170	0.183	0.197	0.200	0.208	0.275	0.299	0.315
1	1	2	2	2	2	2	2	3	3	3

①,a°= 87° ~ 90°

同版本產品組

引用參考

GB /T 3098.25 - 2020

緊固件機械性能不鏽鋼和鎳合金緊固件選用指南

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 922 - 1986

木螺釘技術條件

注：技術數據僅供參考，請以官方原件為準！
