薄壁三孔型自攻螺套 - 短款 YJT 5021 YJT标準體系

選擇規格尺寸點擊↓

M3.5

M10

M12

尺寸單位: mm

标準YJT 5021 YJT5021 5021YJT 薄壁三孔型自攻螺套 - 短款

掃一掃分享

公差公制螺紋極限尺寸米/英制螺紋對照

螺紋規格
D

M3.5

M10

M12

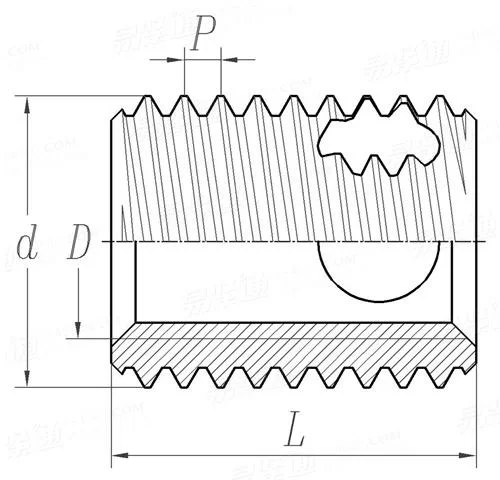

d	外螺紋直徑
P	螺距
L	長度
參考鑽孔直徑
盲孔最小鑽孔深度

5	6	6.5	8	10	12	14
0.6	0.7	0.8	1	1.25	1.5	1.75
5	6	7	8	9	10	12
4.7 ~ 4.8	5.6 ~ 5.7	6.1 ~ 6.2	7.5 ~ 7.7	9.4 ~ 9.6	11.2 ~ 11.5	13.2 ~ 13.5
7	8	9	10	11	13	15

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
