加注和排出口用内六角頭螺堵(PTF螺紋)鑄造 SAE J 531 (130109U) - 2020

選擇規格尺寸點擊↓

1/16

1/8

1/4

3/8

1/2

3/4

同規格，其他部分尺寸不同

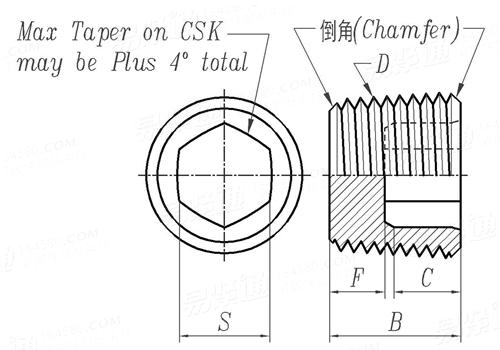

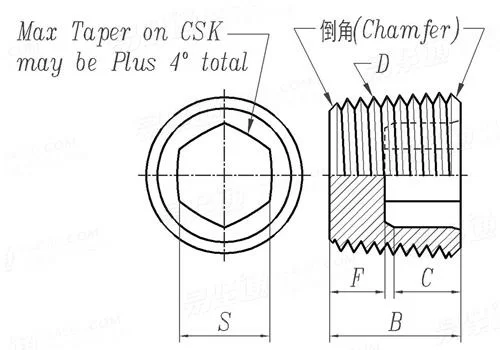

SAE J 531 (130109U) - 2020 加注和排出口用内六角頭螺堵(PTF螺紋)鑄造

尺寸單位: inch

美标SAE J531 (130109U) - 2020 SAE531 531SA 加注和排出口用内六角頭螺堵(PTF螺紋)鑄造

掃一掃分享

公差

螺紋規格
D

1/16

1/8

1/4

3/8

1/2

3/4

PP
B	(mm)
	(in.)
C	(mm)
	(in.)
S	(mm)
	(in.)
F	鐵金屬	(mm)
		(in.)
	有色金屬	(mm)
		(in.)

27	27	27	27	18	18	18	18	14	14	14	14	11-1/2	11-1/2
6.35	6.86	6.60	7.11	10.03	10.80	10.03	10.80	13.21	14.22	13.46	14.48	17.02	18.03
0.250	0.270	0.260	0.280	0.395	0.425	0.395	0.425	0.520	0.560	0.530	0.570	0.670	0.710
2.3	-	2.3	-	4.1	-	4.1	-	4.8	-	4.8	-	6.4	-
0.09	-	0.09	-	0.16	-	0.16	-	0.19	-	0.19	-	0.25	-
3.96	4.09	4.78	4.90	6.35	6.48	7.95	8.08	9.52	9.65	14.30	14.43	15.88	16.00
0.156	0.161	0.188	0.193	0.250	0.255	0.313	0.318	0.375	0.380	0.563	0.568	0.625	0.630
1.5	1.5	2.0	2.0	2.5	2.5	3.3	3.3	4.1	4.1	4.6	4.6	5.1	5.1
0.06	0.06	0.08	0.08	0.10	0.10	0.13	0.13	0.16	0.16	0.18	0.18	0.20	0.20
1.5	1.5	1.5	1.5	1.8	1.8	2.0	2.0	2.3	2.3	2.5	2.5	2.8	2.8
0.06	0.06	0.06	0.06	0.07	0.07	0.08	0.08	0.09	0.09	0.10	0.10	0.11	0.11
