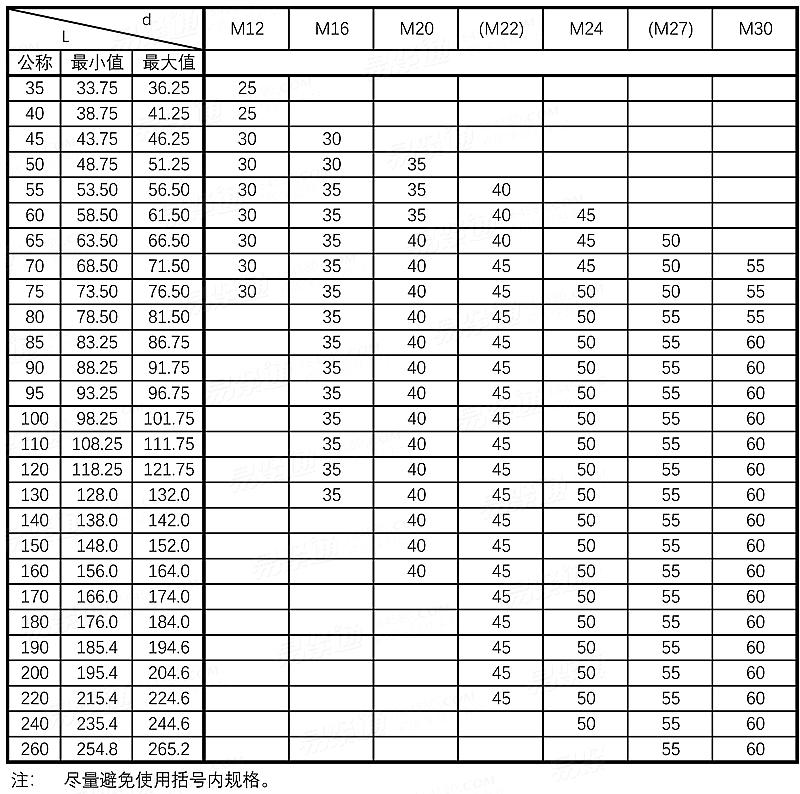

選擇規格尺寸 點擊↓ M12 M16 M20 (M22) M24 (M27) M30 括号内尺寸為非優選
|
尺寸單位:
mm |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
①,技術條件按 GB/T 1231 的規定。 |
類似标準及供貨信息
1 | [國标] GB /T 1231 (bolt) - 2024 |
鋼結構用高強度大六角頭螺栓 High Strength Bolts With Large Hexagon Head Assemblies For Steel Structures 供應商(7) |
|
2 | [國标] GB /T 9125.1 - 2020 |
管法蘭連接用六角頭螺栓 PN系列 Hex Bolt For Pipe Flange Connection - PN designated 供應商(1) |
|
3 | [國标] GB /T 9125.2 - 2020 |
管法蘭連接用六角頭螺栓 Class系列 Hex Bolt For Pipe Flange Connection - Class designated 供應商(1) |
|
4 | [國标] GB /T 16939 - 2016 |
鋼網架螺栓球節點用高強度螺栓 High Strength Bolts For Joints Of Space Grid Structures 供應商(1) |
|
5 | [國标] GB /T 9125 - 2010 |
管法蘭連接用六角頭螺栓 Hex Bolt For Pipe Flange Connection 供應商(1) |
|
6 | [國标] GB /T 9125 - 2003 |
管法蘭連接用六角頭螺栓 Hex Bolt For Pipe Flange Connection 供應商(1) |
|
7 | [國标] GB /T 16939 - 1997 |
鋼網架螺栓球節點用高強度螺栓 High Strength Bolts For Joints Of Space Grid Structures 供應商(1) |
|
8 | [國标] GB /T 1228 - 1991 |
鋼結構用高強度大六角頭螺栓 High strength bolts with large hexagon head for steel structures 供應商(7) |
|
9 | [國标] GB /T 32076.3 - 2015 |
預載荷高強度栓接結構連接副 第3部分 HR型 大六角頭螺栓 High-Strength Structural Bolting Assemblies For Preloading-Part 3:System HR-Hexagon Bolt With Large Width Across Flats |
|
10 | [國标] GB /T 32076.4 - 2015 |
預載荷高強度螺栓結構連接副 第4部分 HV型 大六角頭螺栓 High-Strength Structural Bolting Assemblies For Preloading - Part 4:System HV-Hexagon Bolt With Large Width Across Flats |
|
11 | [國标] GB /T 32076.7 - 2015 |
預載荷高強度螺栓結構連接副 第7部分 HV型 大六角頭螺栓M39~M64 High-strength Structural Bolting Assemblies For Preloading-Part 7:system HV-Hexagon Bolt With Large Width Across Flats And Nut Assemblies M39~m64 |
|
12 | [國标] GB /T 18230.1 - 2000 |
栓接結構用大六角螺栓 Hexagon bolts for structural bolting with large width across flats |
|
13 | [國标] GB /T 18230.2 - 2000 |
栓接結構用大六角螺栓 短螺紋 Large hex bolts for structural bolting with large width across flats - short thread |
|
14 | [美标] IFI 149 - 2000 |
重型大六角頭螺栓 Large Size Heavy Hex Screws |
|
15 | [德标] DIN 6914 - 1989 |
鋼結構大六角螺栓 High-Strength Hexagon Bolts With Large Widths Across Flats For Structural Bolting 供應商(7) |
|
16 | [德标] DIN 7990 - 2017 |
鋼結構用帶六角螺母的六角頭螺栓 Hexagon Head Bolts With Hexagon Nut For Steel Structures |
|
17 | [德标] DIN 7990 - 2008 |
鋼結構用帶六角螺母的六角頭螺栓 Hexagon Head Bolts With Hexagon Nut For Steel Structures |
|
18 | [德标] DIN 7990 - 1989 |
鋼結構用帶六角螺母的六角頭螺栓 Hexagon Head Bolts With Hexagon Nut For Steel Structures |
|
19 | [國際] ISO 7411 - 1984 |
C級高強度鋼結構栓接用六角頭螺栓(螺紋長度根據ISO 888) 8.8和10.9級 Hexagon Bolts For High-Strength Structural Bolting With Large Width Across Flats(Thread Lengths According To ISO 888)—Product Grade C—Property Classes 8.8 And 10.9 供應商(1) |
|
20 | [國際] ISO 7412 - 1984 |
C級高強度鋼結構栓接用大六角頭螺栓(大對邊 短螺紋) 8.8和10.9級 Hexagon Bolts For High-Strength Structural Bolting With Large Width Across Flats(Short Thread Length—Product Grade C—Property Classes 8.8 And 10.9 |
|
21 | [日标] JIS B 1186 - 2013 |
高強度連接用六角頭螺栓 High Strength Hexagon Bolts For Friction Grip Joints |
|
22 | [日标] JIS B 1186 - 1995 |
高強度連接用六角頭螺栓 High Strength Hexagon Bolts For Friction Grip Joints |
|
23 | [機械行業] JB /T 9150 - 1999 |
防松螺栓連接副 - 螺栓(配合防松螺栓連接副 螺紋卡頭使用) Preventing loose bolt connecting assembly-Bolt |
|
24 | [機械行業] JB /T 9150 - 1999 |
防松螺栓連接副 - 螺紋卡頭(配合防松螺栓連接副 螺栓使用) Preventing Loose Bolt Connecting Assembly - Bolt Connector |
|
25 | [美标] ASME/ANSI B 18.2.3.7M - 2006 |
米制重型六角結構螺栓 Metric heavy hex structural bolts 供應商(1) |
|
26 | [美标] ASME/ANSI B 18.2.3.3M - 2001 |
米制重型外六角螺栓 Metric heavy hexagon bolts |
|
27 | [歐标] EN 14399-3 (Bolt) - 2015 |
預負載用高強度結構螺栓連接副,第3部分:HR系統 - 六角螺栓 High-strength structural bolting assemblies for preloading - Part 3: System HR — Hexagon bolt 供應商(3) |
|
28 | [歐标] EN 14399-4 (Bolt) - 2015 |
預負載用高強度結構螺栓連接副,第4部分:HV系統 - 六角螺栓 High-Strength Structural Bolting Assemblies for Preloading - Part 4: System HV - Hexagon Bolts 供應商(2) |
|
29 | [歐标] EN 14399-4 (Bolt) - 2005 |
預負載用高強度結構螺栓連接副,第4部分:HV系統 - 六角螺栓 High-strength Structural Bolting Assemblies for Preloading - Part 4: System HV - Hexagon bolts 供應商(2) |
|
30 | [意大利] UNI 5712 - 1975 |
鋼結構用高強度大六角頭螺栓 - ISO 公制粗牙螺紋 High-strength Large Hexagon Bolts for Structural Engineering - ISO metric coarse thread 供應商(1) |
|
31 | [法國] NF E 25-801-3 - 2005 |
鋼結構用高強度大六角頭螺栓 High Strength Bolts With Large Hexagon Head For Steel Structure |
|
32 | [法國] NF E 25-801-4 - 2005 |
鋼結構用高強度大六角頭螺栓 High Strength Bolts With Large Hexagon Head For Steel Structure |
|
33 | [英标] BS 4395-1 - 1969 |
米制高強度大六角頭螺栓 Table 5 Metric High Strength Large Hexagon Head Bolts |
|
34 | [英标] BS 1769 - 1951 |
大六角頭鍛造螺栓(統一螺紋) Unified hexagon head forged bolts |
|
35 | [美标] ASTM A325M - 2009 |
經熱處理的最小抗拉強度為830 MPa的鋼制結構螺栓規格(米制) Standard Specification for structural bolts,steel,heat treated 830MPa minmum tensile strength(metric) 供應商(1) |
|
36 | [澳标] AS /NZS 1252.1 - 2016 |
高強度六角頭螺栓 High-Strength Steel Bolts 供應商(2) |
|
37 | [澳标] AS /NZS 1252 - 1996 |
米制鋼結構用高強度大六角頭螺栓 High-Strength Steel Bolts 供應商(2) |
|
38 | [鐵道部] TB /T 2347 - 1993 |
鋼軌用8.8級和10.9級高強度絕緣接頭螺栓 供應商(1) |
|
39 | [台灣] CNS 3124 - 1987 |
鋼結構用六角頭螺栓 Hexagon Head Bolts for Steel Structures |
|
40 | [台灣] CNS 4366 - 1987 |
高預力連接鋼結構用大六角頭螺栓(大對面寬度) Hexagon Bolts With Large Widths Across Flats For Steel Structures |
|
41 | [台灣] CNS 11328 - 1985 |
摩擦結合用高強度六角頭螺栓 High Strength Friction Grip Hexagon Bolts |
|
42 | [俄标] GOST 32484.3 - 2014 |
鋼結構用高強度六角頭螺栓 HR型 High-strength Structural Bolting Assemblies For Preloading-system HR-Hex Bolt |
|
43 | [俄标] GOST R 52644 - 2006 |
高強度六角頭螺栓 Hexagon Bolts For High-Strength Structural Bolting With Large Width Across Flats - Product Grade C - Property Classes 8.8 And 10.9 |
|
44 | [企标] YJT 1006 |
管片螺栓 |
|
45 | [電力] DL /T 764.4 - 2002 |
輸電線路鐵塔用熱浸鋅螺栓 Hot dip galvanizing bolts for tower of transmission lines |
|
46 | [建築] JG /T 5057.1 - 1995 |
建築機械與設備 高強度六角頭螺栓 Construction Machinery and Equipment - High Strength Hexagon Head Bolts |
|
47 | [建築] JG /T 5057.2 - 1995 |
建築機械與設備 高強度全螺紋六角頭螺栓 Construction Machinery and Equipment - High Strength Bolts With Hexagon Head - Full Thread |
|
48 | [建築] JG /T 5057.3 - 1995 |
建築機械與設備 細杆高強度六角頭螺栓 Construction Machinery and Equipment - High Strength Bolts With Hexagon Head - Reduced Shank |
|
49 | [建築] JG /T 5057.4 - 1995 |
建築機械與設備 高強度大六角頭螺栓 Construction Machinery and Equipment - High Strength Bolts With Large Hexagon Head |
|
50 | [建築] JG /T 5057.5 - 1995 |
建築機械與設備 高強度細牙六角頭螺栓 Construction Machinery and Equipment - High Strength Bolts With Hexagon Head - Fine Pitch Thread |
|
51 | [德标] DIN EN 14399-4 (Bolt) - 2015 |
預負載用高強度結構螺栓連接副,第4部分:HV系統 - 六角螺栓 High-strength Structural Bolting Assemblies for Preloading - Part 4: System HV - Hexagon bolts 供應商(7) |
|
52 | [印标] IS 3757 - 1985 |
高強度結構螺栓 High strength structural bolts |
|
53 | [美标] ANSI B 18.2.3.6M (J1199,F568,A962,A320) - 1979 (R2006) |
米制重型六角頭螺栓 Metric Heavy Hex Bolts 供應商(1) |
|
54 | [美标] ASME B 18.2.6 - 2019 |
大六角頭結構用螺栓 (ASTM F3125 / F3125M) Heavy Hex Structural Bolts (ASTM F3125 / F3125M) 供應商(2) |
|
55 | [美标] ASME B 18.2.1 - 2012 |
大六角頭螺栓 [Table 3] (ASTM A307 / A394) Heavy Hex Bolts [Table 3] (ASTM A307 / A394) 供應商(6) |
|
56 | [美标] ASME B 18.2.1 - 2012 |
大六角頭螺釘 [Table 7] (ASTM A193 / A320 / A394) Heavy Hex Screws [Table 7] (ASTM A193 / A320 / A394) 供應商(3) |
|
57 | [美标] ASME B 18.2.6M - 2012 |
米制重型六角結構螺栓 (ASTM A 325M / ASTM A 490M) [Table 1] Metric Heavy Hex Structural Bolts (ASTM A 325M / ASTM A 490M) 供應商(1) |
|
58 | [美标] ASME B 18.2.1 - 2010 |
大六角頭螺栓 [Table 3] Heavy Hex Bolts 供應商(6) |
|
59 | [美标] ASME B 18.2.1 - 2010 |
大六角頭螺釘 [Table 7] Heavy Hex Screws [Table 7] 供應商(3) |
|
60 | [美标] ASME B 18.2.6 - 2010 |
大六角頭結構用螺栓 (ASTM A 325 / ASTM A 490) [Table 1] Heavy Hex Structural Bolts (ASTM A 325 / ASTM A 490) 供應商(2) |
|
61 | [美标] ASME B 18.2.6 - 2006 |
鋼結構用大六角頭螺栓 (ASTM A 325 / ASTM A 490) [Table 2] Heavy Hex Structural Bolts (ASTM A 325 / ASTM A 490) 供應商(2) |
|
62 | [能源行業标準] NB /T 31082 - 2016 |
風電機組塔架用高強度螺栓連接副——六角頭螺栓 High-Strength Bolting Assemblies For Tower On Wind Turbine - Hexagon Head Bolts 供應商(3) |
|
63 | [德國鋼結構委員會] DASt 021 - 2006 |
熱鍍鋅緊固件 - DIN 6914, DIN 6915, DIN 6916 六角螺栓(M39~M64) Screw connections made of hot-dip galvanized Sets M39 to M64 accordingly DIN 6914, DIN 6915, DIN 6916 |
