鍛制承插焊活接頭 GB /T 32294 (SUN) - 2015

選擇規格尺寸點擊↓

尺寸單位: mm

國标GB /T32294 (SUN) - 2015 GB32294 32294G 鍛制承插焊活接頭

掃一掃分享

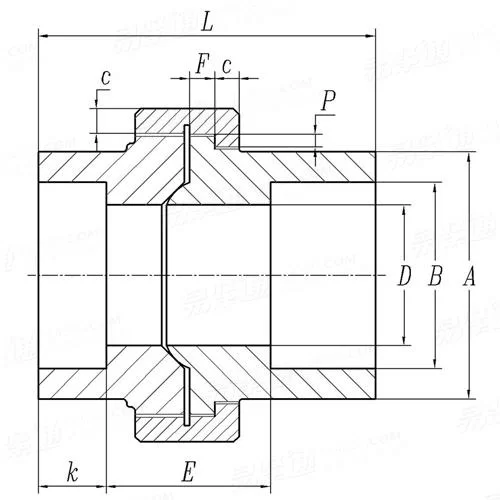

公差

規格

NPS
A	端部尺寸	最小值
B	承插孔徑	最大值
		最小值
D	流通孔徑	最大值
		最小值
E	結構長度	公稱
		最大值
		最小值
F	凸緣厚度	最小值
c	螺母厚度	最小值
每英寸螺母牙數
P	螺母承緣高度	最小值
k	承插孔深度	最小值
L	組裝長度	公稱

1/8	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3
21.9	21.9	25.9	31.3	37.1	45.5	54.9	61.5	75.2	91.7	109.2
11.2	14.5	18.2	22.3	27.9	34.7	43.4	49.3	61.7	74.4	90.4
10.8	14.1	17.8	21.9	27.5	34.3	43	48.9	61.2	73.9	89.9
7.6	10	13.3	16.5	21.7	27.4	35.8	41.6	53.2	64.2	79.4
6.1	8.5	11.8	15	20.2	25.9	34.3	40.1	51.7	61.2	76.4
20.7	20.7	23.8	23.8	28.6	30.2	36.6	38.1	41.4	56.9	58.7
22.3	22.3	27	27	31.8	34.2	40.6	42.1	45.4	61.7	63.5
19.1	19.1	20.6	20.6	25.4	26.2	32.6	34.1	37.4	52.1	53.9
3.2	3.2	3.4	3.7	4.1	4.6	5.4	5.9	6.6	7.5	8.3
3.2	3.2	3.4	3.7	4.1	4.5	5.2	5.6	6.4	7.1	8
16	16	14	14	11	11	10	10	10	8	8
1.3	1.3	1.4	1.5	1.7	1.9	2.2	2.3	2.7	3.1	3.6
9.5	9.5	9.5	9.5	12.5	12.5	12.5	12.5	16	16	16
41.4	41.4	46	49	56.9	62	71.1	76.5	86.1	102.4	109

工藝相關

金屬和合金的腐蝕奧氏體及鐵素體 - 奧氏體(雙相)不鏽鋼晶間腐蝕試驗方法

GB /T 7306.2

55°密封管螺紋圓錐内螺紋與圓錐外螺紋（eqv ISO 7-1:1994）

GB /T 12716

60°密封管螺紋(NPT錐管螺紋)

引用參考

GB /T 1172

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
