六角法蘭面自攻螺釘 BS 7600 - 1992

選擇規格尺寸點擊↓

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

尺寸單位: 毫米(mm)

英标BS 7600 - 1992 BS7600 7600BS 六角法蘭面自攻螺釘

掃一掃分享

單重計算公差

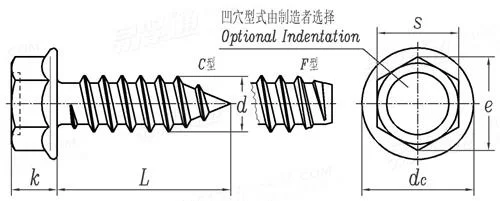

螺紋尺寸
d

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

P	螺距
d_c	最大值
d_c	最小值
s	最大值=公稱
s	最小值
k	最大值
e	最小值

0.8	1.1	1.3	1.4	1.6	1.8	1.8	2.1	2.1
4.5	6.4	7.5	8.5	10.0	11.2	12.8	16.8	21.0
4.1	5.9	6.9	7.8	9.3	10.3	11.8	15.5	19.3
3.00	4.00	5.00	5.50	7.00	7.00	8.00	10.00	13.00
2.86	3.82	4.82	5.32	6.78	6.78	7.78	9.78	12.73
2.2	3.2	3.8	4.3	5.2	6	6.7	8.6	10.7
3.16	4.27	5.36	5.92	7.55	7.55	8.66	10.89	14.16

引用參考

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺釘用螺紋

注：技術數據僅供參考，請以官方原件為準！
