四方槽球面圓柱頭螺釘 [TABLE 2.2.8-2 III] ASME B 18.6.3 (H8B-III) - 2024
| 選擇規格尺寸 點擊↓ 3# 4# 5# 6# 8# 10# 12# 1/4 5/16 3/8 |
尺寸單位:
inch |
|

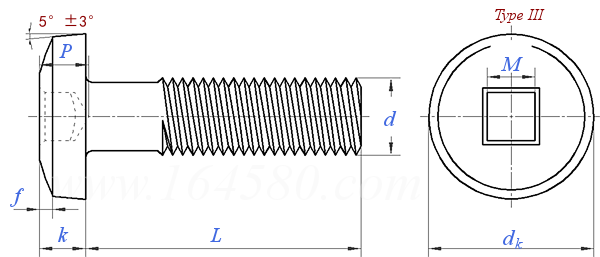

![ASME B 18.6.3 (H8B-III) - 2024 四方槽球面圓柱頭螺釘 [TABLE 2.2.8-2 III]](https://img.164580.com/upload/48/pic_cadpara/1521_zh.png?ue=1734858776&local=cache&tp=canvas&pict=png)
![美标ASME B18.6.3 (H8B-III) - 2024 ASME18.6 四方槽球面圓柱頭螺釘 [TABLE 2.2.8-2 III]](https://img.164580.com/upload/48/pic/2023/12/28/1703723015376781520.jpg)
![ASME B 18.6.3 (H8B-III) - 2024 四方槽球面圓柱頭螺釘 [TABLE 2.2.8-2 III]](https://img.164580.com/upload/48/qrcode_standardurl/24952.png)
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ①,若以小數規定公稱直徑，應省略小數前和小數點後第四位的零。 ②,方槽内壁略帶錐度，以保證插入深量規與有鍍層螺釘凹槽的配合。為使插入深測量深度适用于有塗鍍層的螺釘，制造者在生產（镦頭）時，應為其留出必要的加工餘量。 ③,表中的“R”表示正常插入深度。“S”表示短（淺）插入深度。 |
長度公差
Machine screws can be made to any length, but they are generally produced in fractional length increments of 1/16 in. for screws up to 5/8 in. long, 1/8 in. for screws over 5/8 in. through 1-1/2 in. long, and 1/4 in. for screws over 1-1/2 in. long.
标稱螺釘尺寸的長度公差 | |||
标稱螺釘長度 | 螺紋規格 | ||
0000~00 | 0~12 | 1/4~3/4 | |
≤1/2 | -0.01 | -0.02 | -0.03 |
＞1/2,≤1 | -0.02 | -0.03 | -0.03 |
＞1,≤2 | / | -0.06 | -0.06 |
＞2 | / | -0.09 | -0.09 |
類似标準及供貨信息
| 1 |
![方槽圓頭螺釘 [TABLE 2.2.11-2 III]](http://img.164580.com/upload/48/pic/2023/11/20/1700465811768520855.jpg)
|
[美标] ASME B 18.6.3 (H11B-III) - 2024 |
方槽圓頭螺釘 [TABLE 2.2.11-2 III] Square recessed round head screws [TABLE 2.2.11-2 III] |
| 2 |
|
[美标] ASME B 18.6.3 (T36-III) - 2013 |
方槽圓頭螺釘 Square recessed round head screws |
| 3 |
|
[美标] ASME B 18.6.3 (T28-III) - 2013 |
四方槽球面圓柱頭螺釘 Square Recessed Raised Cheese Head Machine Screws |
