六角頭螺栓 1900-32 UNJF-3A，最小125 KSI，UNS G87400鋼，黑色氧化物，PD柄 SAE AS 9283 (B) - 1999 (2015)

選擇規格尺寸點擊↓

SAE AS 9283 (B) - 1999 (2015) 六角頭螺栓 1900-32 UNJF-3A，最小125 KSI，UNS G87400鋼，黑色氧化物，PD柄

尺寸單位: inch

美标SAE AS9283 (B) - 1999 (2015) SAE9283 9 六角頭螺栓 1900-32 UNJF-3A，最小125 KSI，UNS G87400鋼，黑色氧化物，PD柄

掃一掃分享

單重計算公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

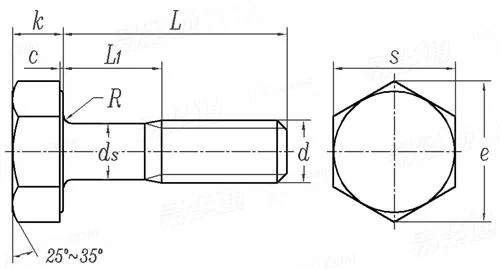

代号

d_s	最大值
	最小值
s	最大值
	最小值
e	最小值
k	最大值
	最小值
c	最大值
	最小值
R	最大值
	最小值
L	最小值
	最大值
L₁	最小值
	最大值
千件重kg

0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175
0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165
0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376
0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367
0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410
0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125
0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105
0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026
0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006
0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025
0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015
0.365	0.428	0.490	0.552	0.615	0.678	0.740	0.802	0.865	0.928	0.990	1.052	1.115	1.178
0.385	0.448	0.510	0.572	0.635	0.698	0.760	0.822	0.885	0.948	1.010	1.072	1.135	1.198
0.072	0.072	0.072	0.072	0.072	0.072	0.072	0.122	0.185	0.248	0.310	0.372	0.435	0.498
0.092	0.092	0.092	0.092	0.092	0.092	0.120	0.182	0.245	0.308	0.370	0.432	0.495	0.558
0.299	0.318	0.336	0.354	0.372	0.390	0.408	0.426	0.445	0.463	0.485	0.503	0.522	0.540

代号

d_s	最大值
	最小值
s	最大值
	最小值
e	最小值
k	最大值
	最小值
c	最大值
	最小值
R	最大值
	最小值
L	最小值
	最大值
L₁	最小值
	最大值
千件重kg

0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175
0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165
0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376
0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367
0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410
0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125
0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105
0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026
0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006
0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025
0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015
1.240	1.302	1.365	1.428	1.490	1.552	1.615	1.678	1.740	1.865	1.990	2.115	2.240	2.365
1.260	1.322	1.385	1.448	1.510	1.572	1.635	1.698	1.760	1.885	2.010	2.135	2.260	2.385
0.560	0.622	0.685	0.748	0.810	0.872	0.935	0.998	1.060	1.185	1.310	1.435	1.560	1.685
0.620	0.682	0.745	0.808	0.870	0.932	0.995	1.058	1.120	1.245	1.370	1.495	1.620	1.745
0.558	0.576	0.594	0.612	0.631	0.649	0.667	0.685	0.703	0.739	0.776	0.812	0.848	0.885

代号

d_s	最大值
	最小值
s	最大值
	最小值
e	最小值
k	最大值
	最小值
c	最大值
	最小值
R	最大值
	最小值
L	最小值
	最大值
L₁	最小值
	最大值
千件重kg

0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175	0.175
0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165	0.165
0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376	0.376
0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367	0.367
0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410	0.410
0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125
0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105	0.105
0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026	0.026
0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006	0.006
0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025
0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015
2.490	2.615	2.740	2.865	2.990	3.115	3.240	3.365	3.490	3.615	3.740	3.865
2.510	2.635	2.760	2.885	3.010	3.135	3.260	3.385	3.510	3.635	3.760	3.885
1.810	1.935	2.060	2.185	2.310	2.435	2.560	2.685	2.810	2.935	3.060	3.185
1.870	1.995	2.120	2.245	2.370	2.495	2.620	2.745	2.870	2.995	3.120	3.245
0.921	0.957	0.993	1.030	1.066	1.102	1.139	1.175	1.211	1.247	1.284	1.320

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)

GB /T 12603 - 2005

金屬熱處理工藝分類及代号

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求

GB /T 5779.3 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求

注：技術數據僅供參考，請以官方原件為準！
