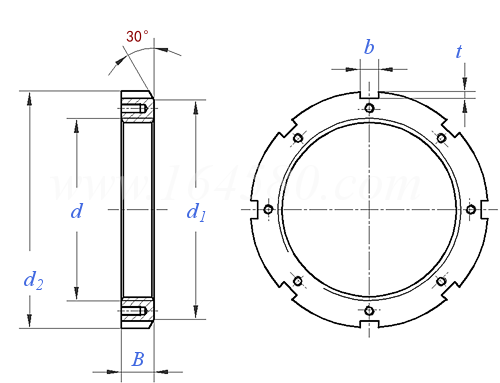

8槽鎖緊螺母 JIS B 1554 (AN/ANL) - 2016

選擇規格尺寸點擊↓

44 AN

48 AN

52 AN

56 AN

60 AN

64 AN

68 AN

72 AN

76 AN

76 B AN

80 AN

80 B AN

84 AN

88 AN

92 AN

96 AN

100 AN

106 AN

112 AN

120 AN

126 AN

134 AN

142 AN

150 AN

160 AN

170 AN

180 AN

190 AN

200 AN

212 AN

44 ANL

48 ANL

52 ANL

56 ANL

60 ANL

64 ANL

68 ANL

72 ANL

76 ANL

80 ANL

84 ANL

88 ANL

92 ANL

96 ANL

100 ANL

106 ANL

112 ANL

120 ANL

126 ANL

134 ANL

142 ANL

150 ANL

160 ANL

170 ANL

180 ANL

190 ANL

200 ANL

212 ANL

224 ANL

尺寸單位: mm

日标JIS B1554 (AN/ANL) - 2016 JIS1554 1554 8槽鎖緊螺母

掃一掃分享

公差公制螺紋極限尺寸米/英制螺紋對照

代号

44
AN

48
AN

52
AN

56
AN

60
AN

64
AN

68
AN

72
AN

76
AN

76
B AN

80
AN

80
B AN

84
AN

88
AN

92
AN

d
d₁
d₂
B
b
t

220	240	260	280	300	320	340	360	380	380	400	400	420	440	460
250	270	300	320	340	360	400	420	450	440	470	460	490	510	540
280	300	330	350	380	400	440	460	490	490	520	520	540	560	580
32	34	36	38	40	42	55	58	60	60	62	62	70	70	75
20	20	24	24	24	24	28	28	32	32	32	32	32	36	36
10	10	12	12	12	12	15	15	18	18	18	18	18	20	20

代号

96
AN

100
AN

106
AN

112
AN

120
AN

126
AN

134
AN

142
AN

150
AN

160
AN

170
AN

180
AN

190
AN

200
AN

212
AN

d
d₁
d₂
B
b
t

480	500	530	560	600	630	670	710	750	800	850	900	950	1000	1060
560	580	610	650	690	730	775	825	875	925	975	1030	1080	1140	1210
620	630	670	710	750	800	850	900	950	1000	1060	1120	1170	1240	1300
75	80	80	85	85	95	106	106	112	112	118	125	125	125	125
36	40	40	45	45	50	50	55	60	60	70	70	70	70	70
20	23	23	25	25	28	28	30	34	34	38	38	38	38	38

代号

44
ANL

48
ANL

52
ANL

56
ANL

60
ANL

64
ANL

68
ANL

72
ANL

76
ANL

80
ANL

84
ANL

88
ANL

92
ANL

96
ANL

100
ANL

d
d₁
d₂
B
b
t

220	240	260	280	300	320	340	360	380	400	420	440	460	480	500
242	270	290	310	336	356	376	394	422	442	462	490	510	530	550
260	290	310	330	360	380	400	420	450	470	490	520	540	560	580
30	34	34	38	42	42	45	45	48	52	52	60	60	60	68
20	20	20	24	24	24	24	28	28	28	32	32	32	36	36
9	10	10	10	12	12	12	13	14	14	14	15	15	15	15

代号

106
ANL

112
ANL

120
ANL

126
ANL

134
ANL

142
ANL

150
ANL

160
ANL

170
ANL

180
ANL

190
ANL

200
ANL

212
ANL

224
ANL

d
d₁
d₂
B
b
t

530	560	600	630	670	710	750	800	850	900	950	1000	1060	1120
590	610	660	690	740	780	820	870	925	975	1025	1085	1145	1205
630	650	700	730	780	830	870	920	980	1030	1080	1140	1200	1260
68	75	75	75	80	90	90	90	90	100	100	100	100	100
40	40	40	45	45	50	55	55	60	60	60	60	60	60
20	20	20	20	20	25	25	25	25	25	25	25	25	25

采用标準

ISO 2982-2 (8Slot) - 2013

滾動軸承附件 - 8槽鎖緊螺母

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

緊固件公差（螺栓、螺柱、螺釘和螺母）

GB 3103.2 - 1982

緊固件公差 - 用于精密機械的螺栓、螺釘和螺母

注：技術數據僅供參考，請以官方原件為準！
