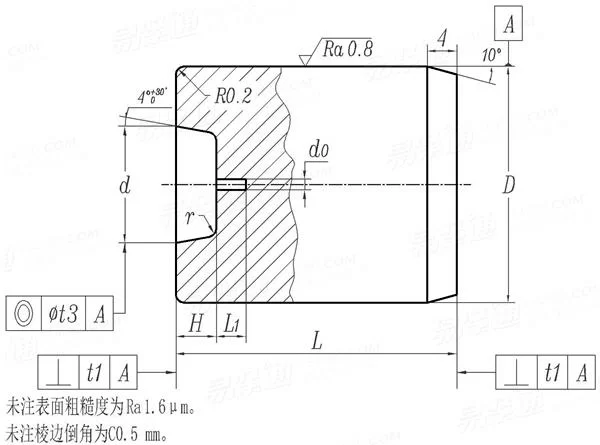

| d
|
最小值=公稱 |
| 最大值 |
| H
|
最大值=公稱 |
| 最小值 |
| D
|
公稱 |
| 最大值 |
| 最小值 |
| L
|
最大值=公稱 |
| 最小值 |
| r
|
| d0
|
| L1
|
| t1
|
| t3
|
|
| 3.79 |
4.79 |
5.39 |
7.75 |
9.25 |
11.7 |
15.7 |
19.64 |
| 3.865 |
4.865 |
5.465 |
7.84 |
9.34 |
11.81 |
15.81 |
19.77 |
| 1.02 |
1.22 |
1.50 |
2.08 |
2.65 |
3.20 |
4.28 |
5.45 |
| 0.96 |
1.16 |
1.44 |
2.02 |
2.59 |
3.125 |
4.205 |
5.375 |
| 12 |
12 |
16 |
16 |
20 |
20 |
28 |
32 |
| 12.057 |
12.057 |
16.057 |
16.057 |
20.076 |
20.076 |
28.076 |
32.093 |
| 12.039 |
12.039 |
16.039 |
16.039 |
20.055 |
20.055 |
28.055 |
32.068 |
| 14 |
14 |
18 |
18 |
24 |
24 |
34 |
38 |
| 13.93 |
13.93 |
17.93 |
17.93 |
23.916 |
23.916 |
33.9 |
37.9 |
| 0.6 |
0.8 |
0.9 |
1.2 |
1.5 |
1.8 |
2.4 |
3 |
| 0.3 |
0.4 |
0.5 |
0.6 |
0.8 |
0.9 |
1.2 |
1.3 |
| 1 |
1.2 |
1.5 |
2 |
2.5 |
3 |
3.5 |
4 |
| 0.04 |
0.04 |
0.04 |
0.04 |
0.05 |
0.05 |
0.05 |
0.06 |
| 0.04 |
0.04 |
0.04 |
0.04 |
0.05 |
0.05 |
0.06 |
0.06 |
|
