彈性螺母塊 YJT 3027 (HRN) YJT标準體系

選擇規格尺寸點擊↓

4-6-20

5-6-20

4-8-30

5-8-30

6-8-30

4-8-40

5-8-40

6-8-40

8-8-40

6-10

8-10

6-10-45L

8-10-45L

尺寸單位: mm

掃一掃分享

公差公制螺紋極限尺寸米/英制螺紋對照

代号

4-6-20

5-6-20

4-8-30

5-8-30

6-8-30

4-8-40

5-8-40

6-8-40

8-8-40

6-10

8-10

6-10-45L

8-10-45L

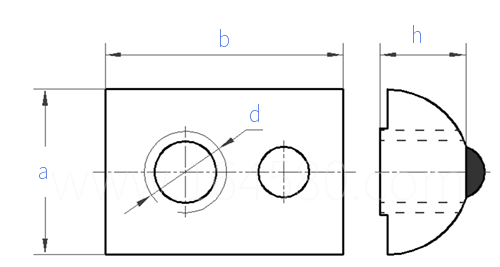

d
a
b
h
對應鋁型材

M4	M5	M4	M5	M6	M4	M5	M6	M8	M6	M8	M6	M8
8	8	13	13	13	13.8	13.8	13.8	13.8	16	16	16	16
12.3	12.3	21	21	21	23	23	23	23	23	23	23	23
4	4	6.5	6.5	6.5	7.4	7.4	7.4	7.4	7.5	7.5	8.3	8.3
20	20	30	30	30	40	40	40	40	45/50/60	45/50/60	45L	45L

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

緊固件公差（螺栓、螺柱、螺釘和螺母）

GB 3103.2 - 1982

緊固件公差 - 用于精密機械的螺栓、螺釘和螺母

注：技術數據僅供參考，請以官方原件為準！

本頁面所載 YJT^® 标準編碼及相關内容版權歸易緊通所有，需經授權方可使用。
