六角頭帶介(華司)鑽尾自攻釘 JIS B 1124 (T1) - 2003

選擇規格尺寸 點擊↓

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

5

6

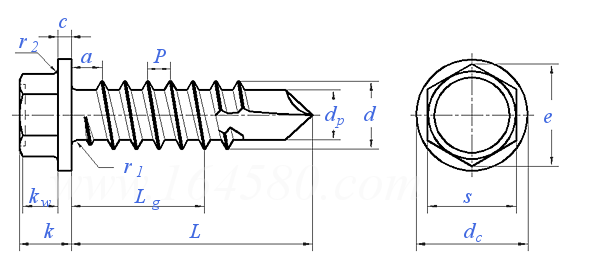

JIS B 1124 (T1) - 2003 六角頭帶介(華司)鑽尾自攻釘

尺寸單位: mm
日标JIS B1124 (T1) - 2003 JIS1124 1124JIS 六角頭帶介(華司)鑽尾自攻釘
JIS B 1124 (T1) - 2003 六角頭帶介(華司)鑽尾自攻釘
掃一掃分享
公稱長度L
公稱直徑
d
ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3 5 6
P 螺距
a 最大值
dc 最大值
最小值
c 最小值
s 最大值=公稱
最小值
e 最小值
k 最大值=公稱
最小值
kw 最小值
r1 最大值
r2 最大值
鑽削範圍(闆厚)
1.1 1.3 1.4 1.6 1.8 1.8 1.6 1.8
1.1 1.3 1.4 1.6 1.8 1.8 1.6 1.8
6.3 8.3 8.8 10.5 11 13.5 11 13.5
5.8 7.6 8.1 9.8 10 12.2 10 12.2
0.4 0.6 0.8 0.9 1 1 1.0 1.0
4 5.5 7 8 8 10 8 10
3.82 5.32 6.78 7.78 7.78 9.78 7.78 9.78
4.28 5.96 7.59 8.71 8.71 10.95 8.71 10.95
2.8 3.4 4.1 4.3 5.4 5.9 5.4 6.6
2.5 3 3.6 3.8 4.8 5.3 4.8 6.0
1.3 1.5 1.8 2.2 2.7 3.1 2.7 3.1
0.4 0.5 0.6 0.7 0.8 0.9 0.8 0.9
0.2 0.25 0.3 0.3 0.4 0.5 0.4 0.5
0.7 0.7 1.75 1.75 1.75 2 1.75 2
1.9 2.25 3 4.4 5.25 6 4.4 6
Lg 最小值
- - - - - - - -
①,dp 按JIS B 1059 的規定。
替代列表
注:技術數據僅供參考,請以官方原件為準!
告訴我在“易緊通”看到,将給您優惠
聯系人:季工 點擊這裏給我發消息2678152018   移動電話: 13301992698     電話:021-58109821,51992525 Email: 登陸後可見
“宏塔”牌鑽尾自鑽螺絲材質:410、304不鏽鋼、1022A低碳鋼;表面處理:鍍白鋅、彩鋅、鎳、達克羅、烤漆、五号尾;公稱直徑:ST2.9-ST6.3;公稱長度:9.5—300mm
