首頁 產品與标準 SJ 2504 - 1984 十字槽扁圓頭普通螺紋自攻螺釘

十字槽扁圓頭普通螺紋自攻螺釘 SJ 2504 - 1984

選擇規格尺寸 點擊↓

ST2

ST2.5

ST3

(ST3.5)

ST4.0

ST5

ST6

括号内尺寸為非優選

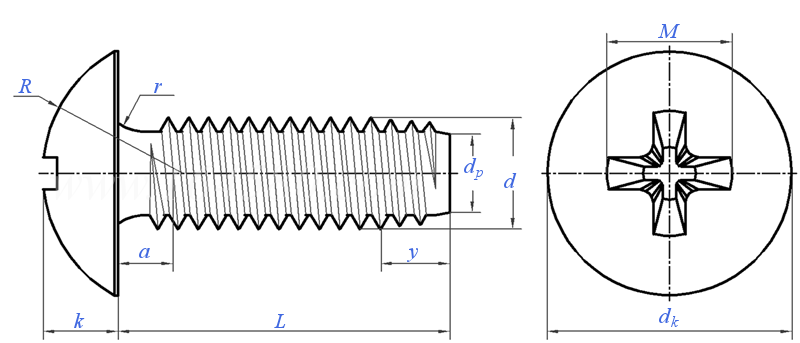

SJ 2504 - 1984 十字槽扁圓頭普通螺紋自攻螺釘

尺寸單位: mm
原電子工業部SJ 2504 - 1984 SJ2504 2504SJ 十字槽扁圓頭普通螺紋自攻螺釘
SJ 2504 - 1984 十字槽扁圓頭普通螺紋自攻螺釘
掃一掃分享
單重計算 公差 公制螺紋極限尺寸 米/英制螺紋對照 螺紋直徑與受力截面積 毛坯直徑
螺紋規格
d
ST2 ST2.5 ST3 (ST3.5) ST4.0 ST5 ST6
P 螺距
a 最大值
dk 最大值
最小值
k 最大值
最小值
dp 最大值
最小值
y 最大值
槽号
M ≈
插入深度/最大值
插入深度/最小值
r 最小值
R ≈
0.4 0.45 0.5 0.6 0.7 0.8 1
0.8 0.9 1 1.2 1.4 1.6 2
4.5 5.7 6.9 8.1 9.4 11.8 14
4.1 5.3 6.4 7.6 8.9 11.2 13.7
1.3 1.6 2.05 2.35 2.65 3.25 3.9
1.1 1.4 1.75 2.05 2.35 2.95 3.5
1.37 1.80 2.22 2.57 2.93 3.78 4.50
1.23 1.63 2.02 2.37 2.67 3.48 4.17
1.6 1.8 2.0 2.4 2.8 3.2 4.0
1 1 1 2 2 2 3
2.2 2.5 2.9 3.9 4.2 4.9 6.2
1.01 1.32 1.72 1.83 2.13 2.83 2.86
0.65 0.95 0.34 1.3 1.6 2.29 2.31
0.1 0.1 0.1 0.1 0.2 0.2 0.25
3 3.7 4.6 5.4 6.1 7.7 9.1

技術條件和引用标準

材料
螺紋 公差
标準
機械性能
緊固件公差
表面處理
驗收及包裝
鋼， SJ 2496-84
大徑按6g
GB 192~197-81
SJ 2496-84
產品等級：A
标準：GB 3103.1-82
鍍鋅鈍化按 SJ 42-77的規定；
如果要求不同鍍層或其他表面處理時，由供需雙方協商．
GB 90.1-84 、GB 90.2-84

引用參考

GB /T 3098.5 - 2016
緊固件機械性能 - 自攻螺釘
GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺釘用螺紋
