十字槽盤頭平尾自攻釘F型 Q 272

選擇規格尺寸 點擊↓

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

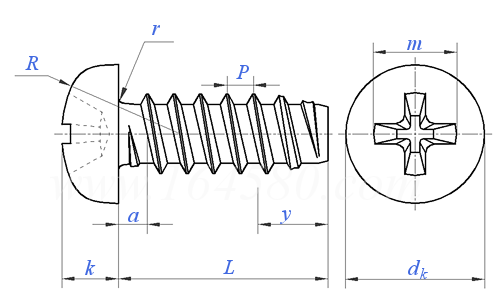

Q 272 十字槽盤頭平尾自攻釘F型

尺寸單位: mm
汽标代号Q 272 Q272 272Q 十字槽盤頭平尾自攻釘F型
Q 272 十字槽盤頭平尾自攻釘F型
掃一掃分享
單重計算 公差
螺紋規格
d
ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3
P 螺距
a 最大值
dk 最大值
最小值
k 最大值
最小值
槽号
m 參考
1.1 1.3 1.4 1.6 1.8 1.8
1.1 1.3 1.4 1.6 1.8 1..8
5.6 7 8 9.5 11 12
5.3 6.64 7.64 9.14 10.57 11.57
2.4 2.6 3.1 3.7 4 4.6
2.15 2.35 2.8 3.4 3.7 4.3
1 2 2 2 3 3
3 3.9 4.4 4.9 6.4 6.9

采用标準

技術條件和引用标準

材料
鋼
螺紋 标準
機械性能 标準
公差 產品等級
标準
十字槽 類型
标準
表面處理 種類
标準
驗收及包裝
GB/T 5280
GB/T 3098.5
A
GB/T 3103.1
H
GB/T 944.1
① 鍍鋅鈍化 Fe/Zn8；② 非電解鋅片塗層
QC/T 625
GB/T 90.1、GB/T 90.2

引用參考

GB /T 3098.5 - 2016
緊固件機械性能 - 自攻螺釘
GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺釘用螺紋
