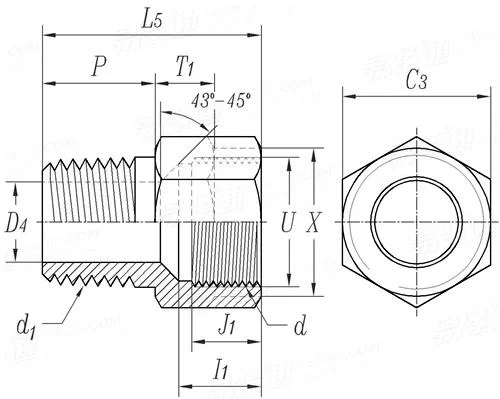

制冷劑管接頭 - Internal Flare To External Pipe Adapter SAE J 513 (010106-U5) - 2019

選擇規格尺寸 點擊↓

3/16

1/4

5/16

3/8

1/2

5/8

3/4

SAE J 513 (010106-U5) - 2019 制冷劑管接頭 - Internal Flare To External Pipe Adapter

尺寸單位: inch
美标SAE J513 (010106-U5) - 2019 SAE513 513 制冷劑管接頭 - Internal Flare To External Pipe Adapter
SAE J 513 (010106-U5) - 2019 制冷劑管接頭 - Internal Flare To External Pipe Adapter
掃一掃分享
公差
管外徑
3/16 1/4 5/16 3/8 1/2 5/8 3/4
d1 ① （NPTF）
d （UN）
C3
D4 毫米
英寸
I1 毫米
英寸
J1 毫米 最小值
英寸 最小值
L5 毫米 公稱
最大值
最小值
英寸 公稱
最大值
最小值
P 毫米 最大值
英寸 最大值
T1 毫米 最小值
英寸 最小值
U 毫米 最大值
最小值
英寸 最大值
最小值
X 毫米 最大值
最小值
英寸 最大值
最小值
1/8 1/8 1/8 1/4 3/8 1/2 1/2
3/8 -24 7/16 -20 1/2 -20 5/8 -18 3/4 -16 7/8 -14 1-1/16 -14
1/2 5/8 11/16 13/16 15/16 1-1/16 1-5/16
4.78 5.56 5.56 8.74 10.31 14.27 14.27
0.188 0.219 0.219 0.344 0.406 0.562 0.562
7.1 8.6 9.7 11.2 13.5 16.8 19.8
0.28 0.34 0.38 U 0.53 0.66 0.78
5.3 6.6 7.6 8.6 5.4 13.7 16.8
0.21 0.26 0.3 0.34 0.43 0.54 0.66
20.6 23.1 23.9 32.5 35.1 42.2 47.8
21.4 23.9 24.7 33.3 35.9 43 48.6
19.8 22.3 23.1 31.7 34.3 41.4 47
0.81 0.91 0.94 1.28 1.33 1.66 1.88
0.84 0.94 0.97 1.31 1.36 1.69 1.91
0.78 0.88 0.91 1.25 1.3 1.63 1.85
9.7 9.7 9.7 14.5 14.5 19 19
0.38 0.38 0.38 0.57 0.57 0.75 0.75
5.3 6.1 6.1 7.6 9.4 10.9 12.4
0.21 0.24 0.24 0.3 0.37 0.43 0.49
10.4 11.9 13.5 17 20.3 23.6 28.2
9.9 11.4 13 16.3 19.6 22.9 27.4
0.41 0.47 0.53 0.67 0.8 0.93 1.11
0.39 0.45 0.51 0.64 0.77 0.9 1.08
12.7 15.7 17.5 20.6 23.9 26.9 33.3
12.2 15.2 17 20.1 23.4 26.4 32.8
0.5 0.62 0.69 0.81 0.94 1.06 1.31
0.48 0.6 0.67 0.79 0.92 1.04 1.29
