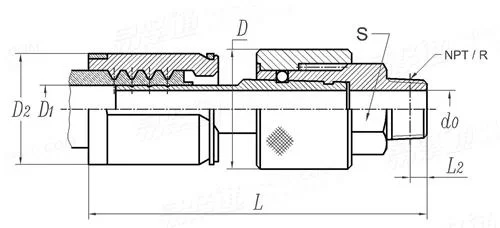

快速接頭 - 兩端開放式 B型 JB /ZQ 4079 (B) - 1997

選擇規格尺寸 點擊↓

6

8

10

15

20

25

32

40

50

JB /ZQ 4079 (B) - 1997 快速接頭 - 兩端開放式 B型

尺寸單位: mm
機械行業JB /ZQ4079 (B) - 1997 JB4079 4079JB 快速接頭 - 兩端開放式 B型
JB /ZQ 4079 (B) - 1997 快速接頭 - 兩端開放式 B型
掃一掃分享
公差
千件重及價格計算 千件重 : kg x 元/kg = 元/千件
默認密度 g/cm3
×

選擇材料對應密度(g/cm3)

  • 碳鋼 7.85
  • 不鏽鋼 8.1
  • 不鏽鋼 7.95
  • 不鏽鋼 7.7
  • 钛合金 4.5
  • 鋁合金 2.8
  • 銅 8.89


在此選擇或在計算頁輸入材料密度 密度表
公稱通徑
6 8 10 15 20 25 32 40 50
公稱流量(升/每分鍾)
D1 膠管内徑
NPT
R
工作壓力 /MPa
D2
D
d0
L2 NPT
R
L NPT
R
s
單重≈kg
6.3 25 40 63 100 160 250 400 630
8 10 12.5 16 22 25 31.5 38 51
1/8 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2
1/8 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2
16 16 16 16 16 14 11 9 8
32 35 40 45 51 58 66 72 86
29 34 39 43 55 59 70 78 90
5 7 10 13 17 21 28 33 42
4.102 5.786 6.096 8.128 8.611 10.16 10.668 10.668 11.074
4 6 6.4 8.2 9.5 10.4 12.7 12.7 15.9
115 122 134 145 158 170 186 210 232
120 126 142 148 165 175 194 216 240
21 27 30 34 46 50 60 70 80
0.36 0.45 0.69 0.85 1.21 1.75 2.65 3.5 5.12
①,膠管按 GB 3683《鋼絲編織液壓膠管》的規定。
