C級90°沉頭方頸螺栓 UNI 6104 - 1975

選擇規格尺寸點擊↓

M10

M12

(M14)

M16

(M20)

M22

括号内尺寸為非優選

尺寸單位: mm

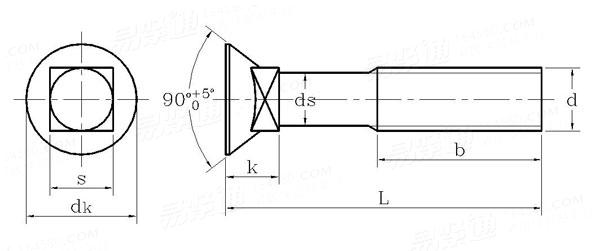

意大利UNI 6104 - 1975 UNI6104 6104UNI C級90°沉頭方頸螺栓

掃一掃分享

單重計算公差

螺紋規格
d

M10

M12

(M14)

M16

(M20)

M22

P	螺距
d_s
b
d_k	公稱 (js16)
	最大值
	最小值
k
s

1.5	1.75	2	2	2.5	2.5
10	12	14	16	20	22
26	30	34	38	46	50
20	24	28	32	36	40
20.65	24.65	28.65	32.8	36.8	40.8
19.35	23.35	27.35	31.2	35.2	39.2
10	12	14	16	18	20
10	12	14	16	20	22

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

類似标準及供貨信息

1	[國标] GB /T 10 - 2013	沉頭方頸螺栓 Countersunk Head Square Neck Bolts 供應商(2)
2	[國标] GB /T 10 - 1988	沉頭方頸螺栓 Flat Countersunk Square Neck Bolts 供應商(2)
3	[國标] GB 10 - 1976	沉頭方頸螺栓 Countersunk head square neck bolts 供應商(2)
4	[國标] GB /T 21934 - 2008	土方機械沉頭方頸螺栓 Earth-Moving Machinery - Plough Bolt
5	[德标] DIN 608 - 2010	短方頸沉頭螺栓 Flat Countersunk Head Square Neck Bolts With Short Square 供應商(1)
6	[德标] DIN 608 - 2007	沉頭矮方頸螺栓 Flat Countersunk Short Square Neck Bolts，With Short Square 供應商(1)
7	[德标] DIN 608 - 1981	沉頭方頸螺栓 Flat Countersunk Square Neck Bolts With Short Square 供應商(1)
8	[德标] DIN 605 - 2010	120°沉頭高方頸螺栓 Flat Countersunk Head Square Neck Bolts With Long Square
9	[德标] DIN 605 - 1981	沉頭方頸螺栓 Flat countersunk head square neck bolts with long square
10	[美标] ASME/ANSI B 18.5 - 2008	大沉頭方頸螺栓(皮帶螺栓) Flat countersunk head elevator bolts 供應商(1)
11	[美标] ASME/ANSI B 18.5 - 2012	大沉頭方頸螺栓 [Table 9] Large Countersunk Square Neck Bolts [Table9]
12	[美标] ASME/ANSI B 18.5 - 2012	英制114°沉頭方頸螺栓 [Table 8] (A307, SAE J429, F468, F593) 114-deg Countersunk Square Neck Bolts,(Inch Series) [Table 8] (A307, SAE J429, F468, F593)
13	[美标] ASME/ANSI B 18.5 - 2008	大沉頭方頸螺栓 [Table9] Large Countersunk Square Neck Bolts [Table9]
14	[美标] ASME/ANSI B 18.5 - 2008	沉頭方頸螺栓 114° Countersunk square neck bolts
15	[美标] ASME/ANSI B 18.9 - 2007	沉頭方頸螺栓 Plow Bolts(Round,Countersunk,Square Neck)
16	[英标] BS 4933 - 1973	米制120°沉頭方頸螺栓 Metric 120°Countersunk Head Square Neck Bolts
17	[英标] BS 4933 - 1973	米制90°沉頭方頸螺栓 Metric 90°Countersunk Square Bolts
18	[英标] BS 325 - 1947	粗制沉頭方頸螺栓Table5 Black Countersunk Square Neck Bolts For Iron
19	[英标] BS 325 - 1947	110°沉頭方頸螺栓Table6 Black Counersunk Square Neck Bolts For Woodwork
20	[台灣] CNS 4418 - 1981	沉頭方頸螺栓 Countersunk Head Square Neck Bolt
21	[台灣] CNS 4419 - 1981	120°沉頭矮方頸螺栓 120°Flat Countersunk Head Short Square Neck Bolts
22	[美标] ASME B 18.5 - 2012 (2017)	英制114°沉頭方頸螺栓 [Table 8] (A307, SAE J429, F468, F593) 114-deg Countersunk Square Neck Bolts,(Inch Series) [Table 8] (A307, SAE J429, F468, F593)
23	[美标] ASME B 18.5 - 2012 (2017)	大沉頭方頸螺栓 [Table 9] Flat Countersunk Head Elevator Bolts [Table9]
24	[美标] ASME B 18.9 - 2012	3号沉頭方頸螺栓（标準頭）[Table 1] (A307, F468, F593, SAE J 429) No.3 Regular Head Plow Bolts (Round, Countersunk, Square Neck) (A307, F468, F593, SAE J 429)
25	[美标] ASME B 18.9 - 2012	3号沉頭方頸螺栓（修正頭）[Table 1] (A307, F468, F593, SAE J 429) No.3 Repair Head Plow Bolts (Round, Countersunk, Square Neck) (A307, F468, F593, SAE J 429)

注：技術數據僅供參考，以官方原件為準！
