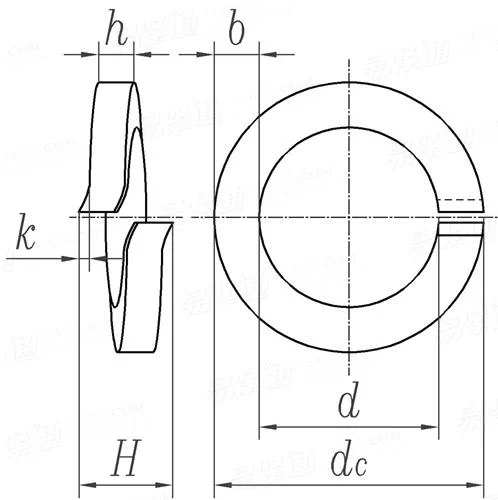

BP型 彈簧墊圈 BS 4464 - 1969

選擇規格尺寸 點擊↓

(M3.5)

M4

M5

M6

M8

M10

M12

(M14)

M16

(M18)

M20

(M22)

M24

(M27)

M30

(M33)

M36

(M39)

M42

(M45)

M48

(M52)

M56

(M60)

M64

(M68)

括号内尺寸為非優選
BS 4464 - 1969 BP型 彈簧墊圈

尺寸單位: mm
英标BS 4464 - 1969 BS4464 4464BS BP型 彈簧墊圈
BS 4464 - 1969 BP型 彈簧墊圈
掃一掃分享
單重計算 公差
規格
(M3.5) M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20 (M22) M24
d 最大值
最小值
b 最大值
最小值
h 公稱
最大值
最小值
dc 最大值
k
3.8 4.35 5.35 6.4 8.55 10.6 12.6 14.7 16.9 19 21.1 23.3 25.3
3.6 4.1 5.1 6.1 8.2 10.2 12.2 14.2 16.3 18.3 20.3 22.4 24.4
1.4 1.6 1.9 2.65 3.15 3.7 4.2 4.7 5.2 5.2 6.2 6.2 7.25
1.2 1.4 1.7 2.35 2.85 3.3 3.8 4.3 4.8 4.8 5.8 5.8 6.75
0.8 0.9 1.2 1.6 2 2.2 2.5 3 3.5 3.5 4 4 5
0.9 1 1.3 1.7 2.1 2.35 2.65 3.15 3.7 3.7 4.2 4.2 5.2
0.7 0.8 1.1 1.5 1.9 2.05 2.35 2.85 3.3 3.3 3.8 3.8 4.8
6.6 7.55 9.15 11.7 14.85 18.0 21.0 24.1 27.3 29.4 33.5 35.7 39.8
0.15 0.15 0.15 0.2 0.3 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.5
規格
(M27) M30 (M33) M36 (M39) M42 (M45) M48 (M52) M56 (M60) M64 (M68)
d 最大值
最小值
b 最大值
最小值
h 公稱
最大值
最小值
dc 最大值
k
28.5 31.5 34.6 37.6 40.8 43.8 46.8 50 54.1 58.1 62.3 66.3 70.5
27.5 30.5 33.5 36.5 39.6 42.6 45.6 48.8 52.8 56.8 60.9 64.9 69
7.25 8.25 10.25 10.25 10.25 12.25 12.25 12.25 14.25 14.25 14.25 14.25 14.25
6.75 7.75 9.75 9.75 9.75 11.75 11.75 11.75 13.75 13.75 13.75 13.75 13.75
5 6 6 6 6 7 7 7 8 8 8 8 8
5.2 6.25 6.25 6.25 6.25 7.25 7.25 7.25 8.25 8.25 8.25 8.25 8.25
4.8 5.75 5.75 5.75 5.75 6.75 6.75 6.75 7.75 7.75 7.75 7.75 7.75
43.0 48.0 55.1 58.1 61.3 68.3 71.3 74.5 82.6 86.6 90.8 93.8 99.0
0.5 0.8 0.8 0.8 0.8 0.8 0.8 0.8 1 1 1 1 1
①,H=(2h+2k)±15%
