鋼結構用大六角頭螺栓 (ASTM A 325 / ASTM A 490) [Table 2] ASME B 18.2.6 - 2006

選擇規格尺寸點擊↓

1/2

5/8

3/4

7/8

1-1/8

1-1/4

1-3/8

1-1/2

ASME B 18.2.6 - 2006 鋼結構用大六角頭螺栓 (ASTM A 325 / ASTM A 490) [Table 2]

尺寸單位: inch

美标ASME B18.2.6 - 2006 ASME18.2.6 18.2.6A 鋼結構用大六角頭螺栓 (ASTM A 325 / ASTM A 490) [Table 2]

模型下載替

掃一掃分享

單重計算公差美制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級

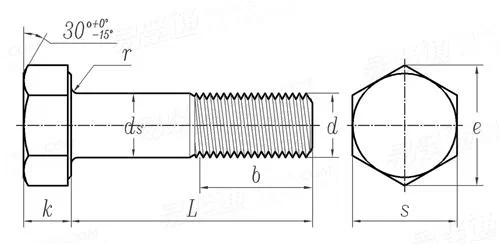

螺紋規格
d

1/2

5/8

3/4

7/8

1-1/8

1-1/4

1-3/8

1-1/2

d_s	最大值
d_s	最小值
s	公稱
	最大值
	最小值
e	最大值
e	最小值
k	公稱
	最大值
	最小值
b	參考

0.515	0.642	0.768	0.895	1.022	1.149	1.277	1.404	1.531
0.482	0.605	0.729	0.852	0.976	1.098	1.223	1.345	1.47
7/8	1-1/16	1-1/4	1-7/16	1-5/8	1-13/16	2	2-3/16	2-3/8
0.875	1.062	1.25	1.438	1.625	1.812	2	2.188	2.375
0.85	1.031	1.212	1.394	1.575	1.756	1.938	2.119	2.3
1.01	1.227	1.443	1.66	1.876	2.093	2.309	2.526	2.742
0.969	1.175	1.383	1.589	1.796	2.002	2.209	2.416	2.622
5/16	25/64	15/32	35/64	39/64	11/16	25/32	27/32	15/16
0.323	0.403	0.483	0.563	0.627	0.718	0.813	0.878	0.974
0.302	0.378	0.455	0.531	0.591	0.658	0.749	0.81	0.902
1	1.25	1.38	1.5	1.75	2	2	2.25	2.25

①,化學成分和機械性能應符合ASTM A 325或ASTM A 490。
