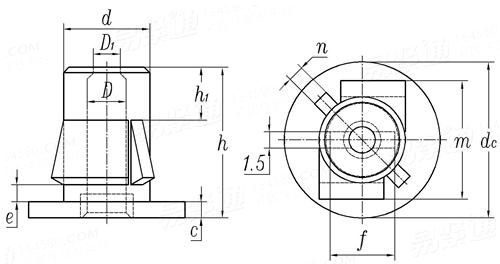

B型通孔式嵌裝塑料螺母 QC /T 615 - 2011

選擇規格尺寸點擊↓

尺寸單位: mm

汽标QC /T615 - 2011 QC615 615QC B型通孔式嵌裝塑料螺母

掃一掃分享

單重計算公差公制螺紋極限尺寸米/英制螺紋對照

代号

适用螺紋	自攻螺釘
D
D₁
d_c
d
c
e
f
h
h₁
m
n

NST4.5	NST4.5	NST5	NST5.5	NST5.5
2.8~3	2.8~3	3.1~3.7	3.6~4.2	3.6~4.2
2	2	2.5	3	3
11.5	14.5	14.5	18	18
6.8~7	7.8~8	7.8~8	7.8~8	7.8~8
1	1.5	1.5	2	2
1.2~1.4	1.5~1.7	1.5~1.7	0.8~1	1.4~1.6
6	7.5	7.5	12.5	12.5
10	14	14	14.5	15
3	5	5	5	5
9.3~9.5	11.8~12	11.8~12	12.3~12.5	12.3~12.5
1	1.5	1.5	1.5	1.5

替代列表

QC /T 615 - 1999 QC /T 615 - 2011
