四方頭帶墊緊定螺釘 CNS 4422 - 1981

選擇規格尺寸 點擊↓

M5

M6

M8

M10

M12

M16

M20

M24

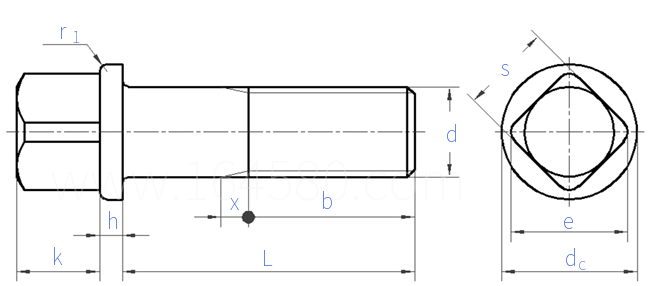

CNS  4422 - 1981 四方頭帶墊緊定螺釘

尺寸單位: mm
台灣CNS 4422 - 1981 CNS4422 4422CNS 四方頭帶墊緊定螺釘
CNS  4422 - 1981 四方頭帶墊緊定螺釘
掃一掃分享
千件重及價格計算 千件重 : kg x 元/kg = 元/千件
默認密度 g/cm3
公稱長度L 注:選擇後獲得 相應重量
螺紋尺寸
d
M5 M6 M8 M10 M12 M16 M20 M24
b L<120
120<L≤200
h
dc
k
s
16 18 22 26 30 38 46 54
/ / / 32 36 44 52 60
2 2 2 3 3 4 5 6
9.5 10.5 13.5 16.5 20.5 25 31 36
5 6 8 10 12 16 20 22
5 6 8 10 13 17 22 24
千件鋼制重≈kg
- - - - - - - -
