大半圓頭方頸螺栓 CNS 4424 - 1981

選擇規格尺寸 點擊↓

M5

M6

M8

M10

M12

M16

M20

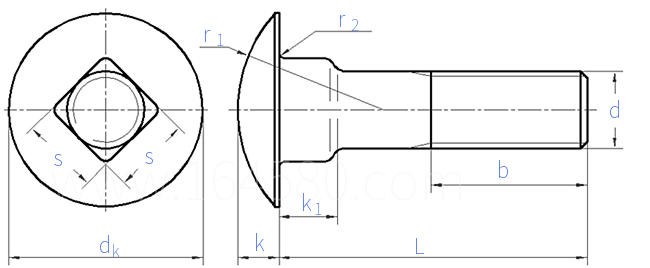

CNS  4424 - 1981 大半圓頭方頸螺栓

尺寸單位: mm
台灣CNS 4424 - 1981 CNS4424 4424CNS 大半圓頭方頸螺栓
CNS  4424 - 1981 大半圓頭方頸螺栓
掃一掃分享
千件重及價格計算 千件重 : kg x 元/kg = 元/千件
默認密度 g/cm3
公稱長度L 注:選擇後獲得 相應重量
螺紋規格
d
M5 M6 M8 M10 M12 M16 M20
P 螺距
b L<120
130<L<200
dk
k
s
k1
0.8 1 1.25 1.5 1.75 2 2.5
16 18 22 26 30 38 46
22 24 28 32 36 44 52
13 16 20 24 30 38 46
3 3.5 4.5 5 6.5 8.5 10.5
5 6 8 10 12 16 20
3.5 4 5 6 8 12 15
千件鋼制重≈kg
- - - - - - -
