A級和B級六角頭螺栓 NF E 25-114 - 2001

選擇規格尺寸 點擊↓

M1.6

M2

M2.5

M3

M4

M5

M6

M8

M10

M12

M16

M20

M24

M30

M36

M42

M48

M56

M64

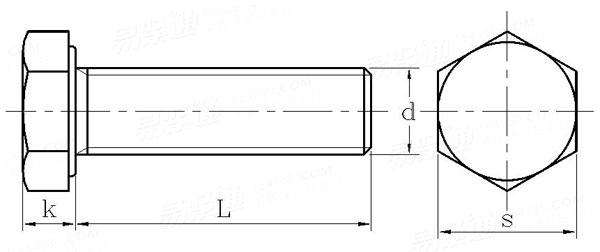

NF E 25-114 - 2001 A級和B級六角頭螺栓

尺寸單位: mm
法國NF E25-114 - 2001 NF25-114 25-114NF A級和B級六角頭螺栓
NF E 25-114 - 2001 A級和B級六角頭螺栓
掃一掃分享
螺紋規格
d
M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10 M12
P 螺距
k A級 最大值
最小值
B級 最大值
最小值
s A級 最大值
最小值
B級 最大值
最小值
0.35 0.40 0.45 0.50 0.70 0.80 1.00 1.25 1.50 1.75
1.225 1.525 1.825 2.125 2.925 3.65 4.15 5.45 6.58 7.68
0.975 1.275 1.575 1.875 2.675 3.35 3.85 5.15 6.22 7.32
1.3 1.6 1.9 2.2 3 3.74 4.24 5.54 6.69 7.79
0.9 1.2 1.5 1.8 2.6 3.26 3.76 5.06 6.11 7.21
3.2 4 5 5.5 7 8 10 13 16 18
3.02 3.82 4.82 5.32 6.78 7.78 9.78 12.73 15.73 17.73
3.2 4 5 5.5 7 8 10 13 16 18
2.9 3.7 4.7 5.2 6.64 7.64 9.64 12.57 15.57 17.57
螺紋規格
d
M16 M20 M24 M30 M36 M42 M48 M56 M64
P 螺距
k A級 最大值
最小值
B級 最大值
最小值
s A級 最大值
最小值
B級 最大值
最小值
2.0 2.5 3 3.5 4 4.5 5 5.5 6
10.18 12.715 15.215 / / / / / /
9.82 12.285 14.785 / / / / / /
10.29 12.85 15.35 19.12 22.92 26.42 30.42 35.5 40.5
9.71 12.15 14.65 18.28 22.08 25.58 29.58 34.5 39.5
24 30 36 / / / / / /
23.67 29.67 35.38 / / / / / /
24 30 36 46 55 65 75 85 95
23.16 29.16 35 45 53.8 63.1 73.1 82.8 92.8
替代列表
暫無
等效标準
國标 GB 國際 ISO 德标 DIN 美标 ASME/ANSI 歐标 EN 意大利 UNI 法國 NF 印标 IS
GB /T 5783
ISO 4017
DIN EN ISO 4017
ANSI/ASME B 18.2.3.1M
EN 24017
UNI 5739
NF E 25-114
IS 1364(-2)
以上有部分标準可能為近似等效,如有異議以标準原件為準
