鋼制螺紋管件表23 - 短管接頭/全牙接頭/筒形接頭 BS EN 10241 (T23) - 2000

選擇規格尺寸點擊↓

100

125

150

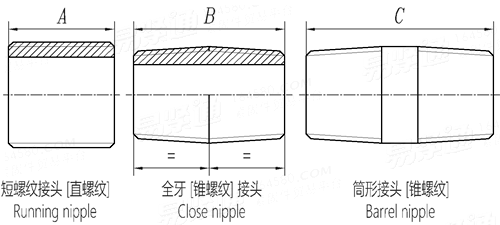

BS EN 10241 (T23) - 2000 鋼制螺紋管件表23 - 短管接頭/全牙接頭/筒形接頭

尺寸單位: mm

英标BS EN 10241 (T23) - 2000 BS EN10241 10 鋼制螺紋管件表23 - 短管接頭/全牙接頭/筒形接頭

掃一掃分享

公差

公稱直徑
DN

100

125

150

A	最小值
	最大值
B	最小值
	最大值
C	最小值
	最大值

19	21	27	30	33	38	38	48	51	57	70	78	78
20.5	22.5	28.5	31.5	34.5	39.5	39.5	51	54	60	73	81	81
27	28	37	39	46	51	51	60	69	75	87	96	96
28.5	29.5	38.5	40.5	47.5	52.5	52.5	63	72	78	90	99	99
38	38	51	54	60	70	70	79	89	102	114	124	127
41	41	55.5	58.5	64.5	76	76	87	97	110	122	132	135

采用标準

GB /T 7307 - 2001

55°非密封管螺紋 (eqv ISO 228-1:1994)

GB /T 7306.1 - 2000

55° 密封管螺紋 - 圓柱内螺紋與圓錐外螺紋（eqv ISO 7-1:1994）

BS EN 10241 (T6) - 2000

管件的螺紋端表6

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

類似标準及供貨信息

1	[日标] JIS B 2351-1 (WDS) - 2000	焊接直通管接頭【表13】 Weld-on straight fittings
2	[機械行業] JB /T 6381.1 - 2007	錐密封焊接式直通管接頭 Welding cone couplings straight male stud couplings
3	[機械行業] JB /T 6381.2 - 2007	錐密封焊接式直通55°非密封管螺紋管接頭 Welding cone couplings straight male stud couplings with G-type pipe threads
4	[機械行業] JB /T 6381.3 - 2007	錐密封焊接式直通55°密封管螺紋管接頭 Welding cone couplings straight male stud couplings with R-type pipe threads
5	[機械行業] JB /T 6382.1 - 2007	錐密封焊接式90°彎管接頭 Welding cone couplings 90° degree syphon male stud couplings
6	[機械行業] JB /ZQ 4773 - 2006	焊接式端直通管接頭
7	[機械行業] JB /ZQ 4774 - 2006	焊接式端直通長管接頭
8	[機械行業] JB /ZQ 4775 - 2006	焊接式直通管接頭
9	[機械行業] JB /ZQ 4776 - 2006	焊接式直角管接頭
10	[機械行業] JB /ZQ 4777 - 2006	焊接式三通管接頭
11	[機械行業] JB /ZQ 4778 - 2006	焊接式四通管接頭
12	[機械行業] JB /ZQ 4779 - 2006	焊接式隔壁直通管接頭
13	[機械行業] JB /ZQ 4780 - 2006	焊接式隔壁直角管接頭
14	[機械行業] JB /ZQ 4781 - 2006	焊接式分管管接頭
15	[機械行業] JB /ZQ 4782 - 2006	焊接式鉸接管接頭
16	[機械行業] JB 2099 - 1977	焊接式管接頭接管
17	[機械行業] JB 970 - 1977	焊接式直通管接頭 Welded straight pipe joint
18	[機械行業] JB 971 - 1977	焊接式直角管接頭
19	[機械行業] JB 972 - 1977	焊接式三通管接頭 Welded Tee Fitting
20	[機械行業] JB /T 973 - 1977	焊接式四通管接頭
21	[機械行業] JB 974 - 1977	焊接式隔壁直通管接頭 Welded partition wall straight pipe joint
22	[機械行業] JB 988 - 1977	焊接式直通管接頭體
23	[機械行業] JB 989 - 1977	焊接式直角管接頭體
24	[機械行業] JB 991 - 1977	焊接式四通管接頭體
25	[歐标] EN 10242 - 1995	可鍛鑄鐵螺紋管件 Threaded pipe fittingsin malleable cast iron
26	[美标] SAE J 513 (010104-US3) - 2019	制冷劑管接頭 - Flare To Solder Reducing Connector （Half Union） Refrigeration Tube Fittings - Flare To Solder Reducing Connector （Half Union）
27	[美标] SAE J 513 (010204-ES) - 2019	制冷劑管接頭 - Flare To Solder 90 Degree Reducing Elbow Refrigeration Tube Fittings - Flare To Solder 90 Degree Reducing Elbow
28	[英标] BS EN 10241 (T7) - 2000	鋼制螺紋管件表7 - 等徑三通和四通彎頭 Steel threaded pipe fittings, Table 7 - Elbow, tee and cross, equal
29	[英标] BS EN 10241 (T8) - 2000	鋼制螺紋管件表8 - 等徑45°彎頭 Steel threaded pipe fittings, Table 8 - Elbow, equal 45 degrees
30	[英标] BS EN 10241 (T9) - 2000	鋼制螺紋管件表9 - 等徑内外螺紋彎頭 Steel threaded pipe fittings, Table 9 - Elbow, male and female, equal
31	[英标] BS EN 10241 (T10) - 2000	鋼制螺紋管件表10 - 中小異徑三通 Steel threaded pipe fittings, Table 10 - Tee, reducing on the branch
32	[英标] BS EN 10241 (T11) - 2000	鋼制螺紋管件表11 - 重型外接頭和半外接頭 Steel threaded pipe fittings, Table 11 - Socket and half socket, equal, type heavy
33	[英标] BS EN 10241 (T13) - 2000	鋼制螺紋管件表13 - 異徑外接頭 Steel threaded pipe fittings, Table 13 - Reducing socket
34	[英标] BS EN 10241 (T14) - 2000	鋼制螺紋管件表14- 外六角等徑内接頭 Steel threaded pipe fittings, Table 14 - Hexagonal nipple, equal
35	[英标] BS EN 10241 (T15) - 2000	鋼制螺紋管件表15 - 外六角内外接頭 Steel threaded pipe fittings, Table 15 - Hexagon bush
36	[英标] BS EN 10241 (T18) - 2000	鋼制螺紋管件表18 - 平座/錐座活接頭 Steel threaded pipe fittings, Table 18 - Socket union
37	[英标] BS EN 10241 (T21) - 2000	鋼制螺紋管件表21 - 長螺管 Steel threaded pipe fittings, Table 21 - Longscrew
38	[英标] BS EN 10241 (T22) - 2000	鋼制螺紋管件表22 - 管螺紋接套 Steel threaded pipe fittings, Table 22 - Pipe nipple
39	[英标] BS EN 10241 (T24-1) - 2000	鋼制螺紋管件表24 - 月彎管 1型 Steel threaded pipe fittings, Table 24 - Bend - Type 1
40	[英标] BS EN 10241 (T24-1A) - 2000	鋼制螺紋管件表24 - 直長螺紋月彎管 1A型 Steel threaded pipe fittings, Table 24 - Bend - Type 1A
41	[英标] BS EN 10241 (T24-2) - 2000	鋼制螺紋管件表24 - 112.5°彎管 2型 Steel threaded pipe fittings, Table 24 - spring - Type 2
42	[英标] BS EN 10241 (T24-3) - 2000	鋼制螺紋管件表24 - 135°彎管 3型 Steel threaded pipe fittings, Table 24 - spring - Type 3
43	[英标] BS EN 10241 (T24-4) - 2000	鋼制螺紋管件表24 - 157.5°彎管 4型 Steel threaded pipe fittings, Table 24 - spring - Type 4
44	[英标] BS EN 10241 (T24-U) - 2000	鋼制螺紋管件表24 - U型彎管 Steel threaded pipe fittings, Table 24 - Return bend
45	[英标] BS EN 10241 (T12)	鋼制螺紋管件表12 - 中型外接頭和半外接頭 Steel threaded pipe fittings, Table 12 - Socket and half socket, equal, type medium
