十字槽100°沉頭螺栓 GJB 3371 (/57~/60) - 1998

選擇規格尺寸點擊↓

M10

尺寸單位: mm

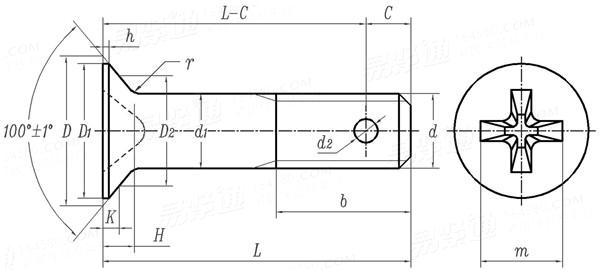

軍标GJB 3371 (/57~/60) - 1998 GJB3371 3371 十字槽100°沉頭螺栓

掃一掃分享

公差公制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級毛坯直徑

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

公稱直徑
d

M10

P	螺距
d₁	h12	最大值=公稱
		最小值
H	參考
h	最小值
D	參考
D₁	最小值
D₂
b	參考
k	0，-0.08
r	0，-0.2
d₂	H13	最小值=公稱
		最大值
C	參考
m	最大值
	最小值

0.7	0.8	1	1.25	1.5
4	5	6	8	10
3.88	4.88	4.88	7.85	9.85
1.68	2.11	2.53	3.38	4.23
0.08	0.1	0.1	0.1	0.1
8	10	12	16	20
7.2	9	10.8	14.8	18.8
5.78	7.71	9	12.21	15.43
7.5	8.5	10	11.5	15
0.93	0.96	1.26	1.6	1.93
0.4	0.5	0.7	0.7	0.8
1	1.6	1.6	2	2.5
1.14	1.74	1.74	2.14	2.64
2.5	3	3	4	4
3.91	4.29	4.42	6.27	8.05
3.58	3.96	4.09	5.94	7.72

千件鋼制重≈kg

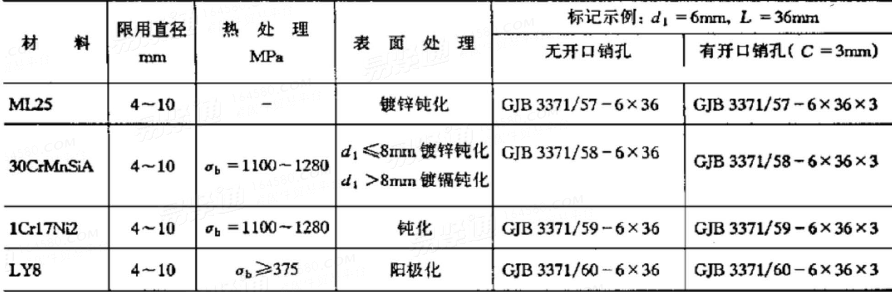

①,ML25和鋁合金制螺栓，光杆直徑 d1 允許等于滾制或切制螺紋前的毛坯尺寸。
②,十字槽按 HB 7369-96。
