彈性圓柱銷 JB /ZQ 4358 - 2006

選擇規格尺寸 點擊↓

32

35

38

40

45

50

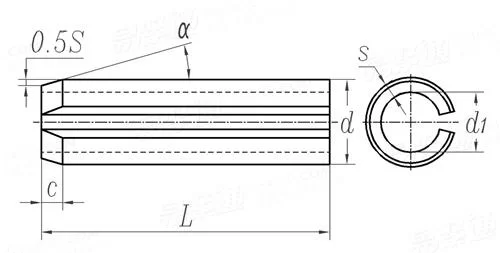

JB /ZQ 4358 - 2006 彈性圓柱銷

尺寸單位: mm
機械行業JB /ZQ4358 - 2006 JB4358 4358JB 彈性圓柱銷
JB /ZQ 4358 - 2006 彈性圓柱銷
掃一掃分享
千件重及價格計算 千件重 : kg x 元/kg = 元/千件
默認密度 g/cm3
公稱長度L 注:選擇後獲得 相應重量
公稱直徑
d
32 35 38 40 45 50
d 最大值
最小值
a
s
d1
c
适用螺栓規格(推薦)
32.9 35.9 38.9 40.9 45.9 50.9
32.5 35.5 38.5 40.5 45.5 50.5
3 3 4 4 4 4
6 7 7.5 7.5 8.5 9.5
20.5 21.5 23.5 25.5 28.5 31.5
15° 15° 15° 15° 15° 15°
M18 M20 M22 M24 M27 M30
千件鋼制重≈kg
- - - - - -
①,銷孔直徑公差帶按 H12。
替代列表

技術條件和引用标準

-
材料:65Mn 的彈簧鋼帶
熱處理硬度:458~544HV
表面處理:氧化
