十字槽沉頭螺釘與錐形外鋸齒鎖緊墊圈組合 Q 240

選擇規格尺寸 點擊↓

M3

M4

M5

M6

M8

Q  240 十字槽沉頭螺釘與錐形外鋸齒鎖緊墊圈組合

尺寸單位: mm
汽标代号Q 240 Q240 240Q 十字槽沉頭螺釘與錐形外鋸齒鎖緊墊圈組合
Q  240 十字槽沉頭螺釘與錐形外鋸齒鎖緊墊圈組合
掃一掃分享

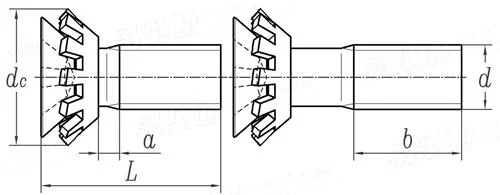

螺紋尺寸
d
M3 M4 M5 M6 M8
a 最大值
b 最小值
dc
1.0 1.4 1.6 2.0 2.5
25 38 38 38 38
6 8 9.8 11.8 15.3

技術條件和引用标準

零件
品種代号
機械性能 等級
标準
表面處理 種類
标準
驗收及包裝
其他技術條件
螺釘 錐形鎖緊墊圈
Q254 Q415
4.8、8.8 -
GB/T 3098.1 -
① 鍍鋅鈍化;② 非電解鋅片塗層
QC/T 625
GB/T 90.1、GB/T 90.2
墊圈應能自由轉動而不脫落。
